Integral shaker - Qish

The Qsouces Qish is developed for the 20 to 2000 Hz frequency range. The force level is enough to excite complete vehicles, vehicle bodies, powertrains and drivelines, suspension systems, moderate size aircraft systems, railway bodies, and machinery up to around 5,000 kg. It provides an efficient and accurate solution for measuring structural and vibroacoustic frequency response functions (FRF). And it mounting and suspension system allow the use in narrow spaces in any inclination.

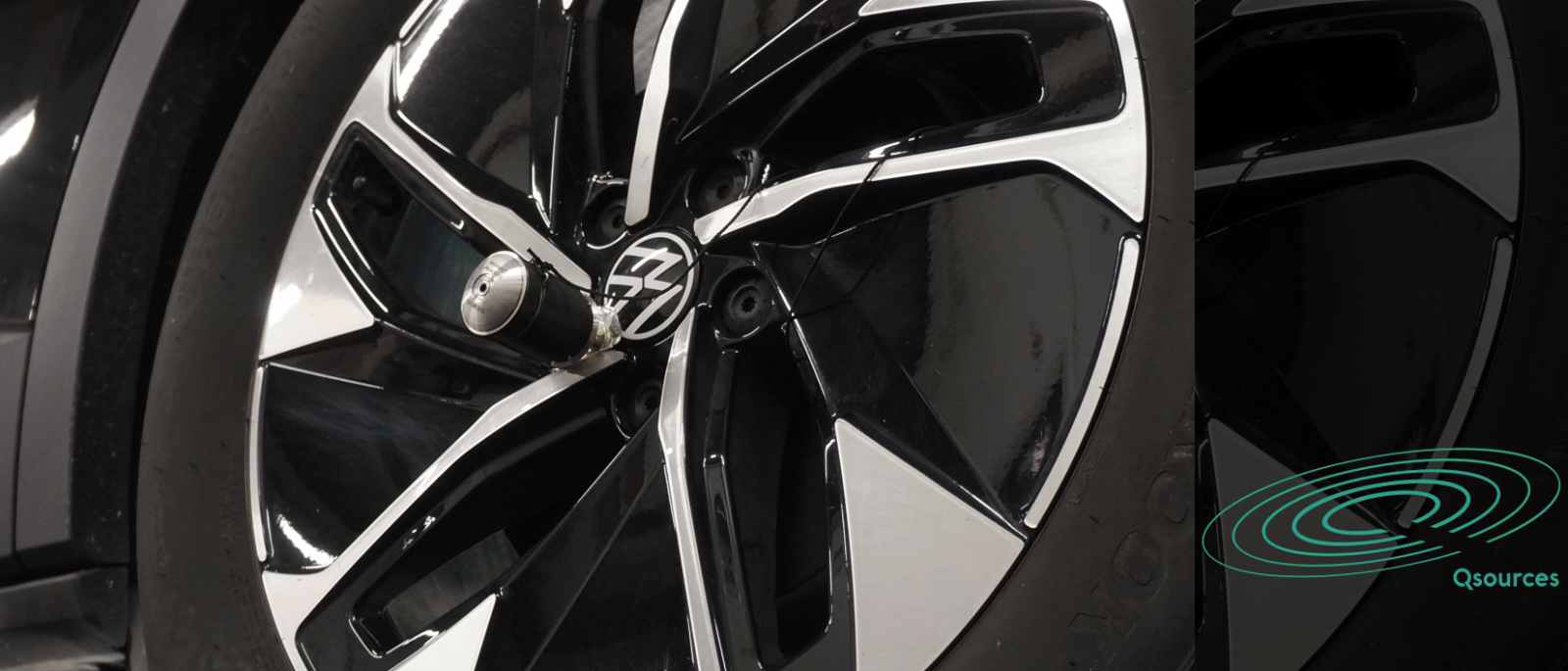

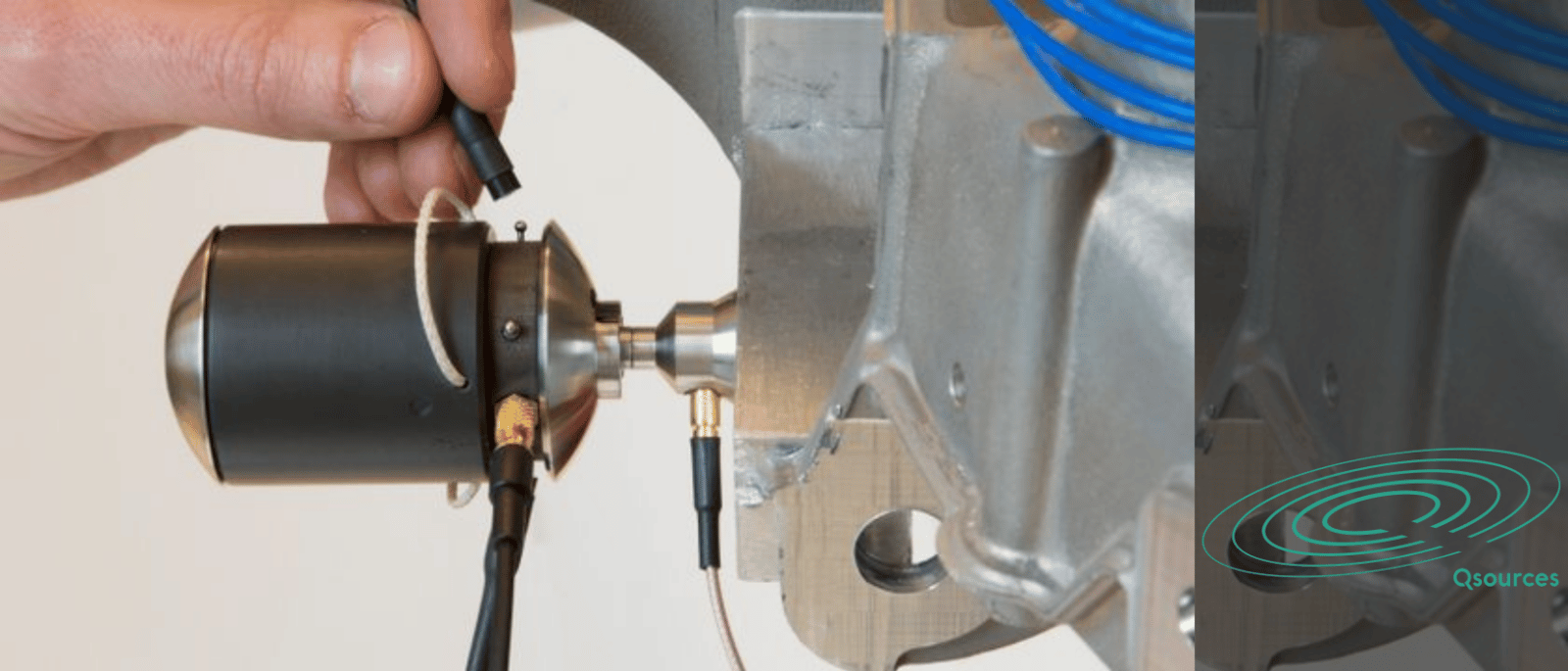

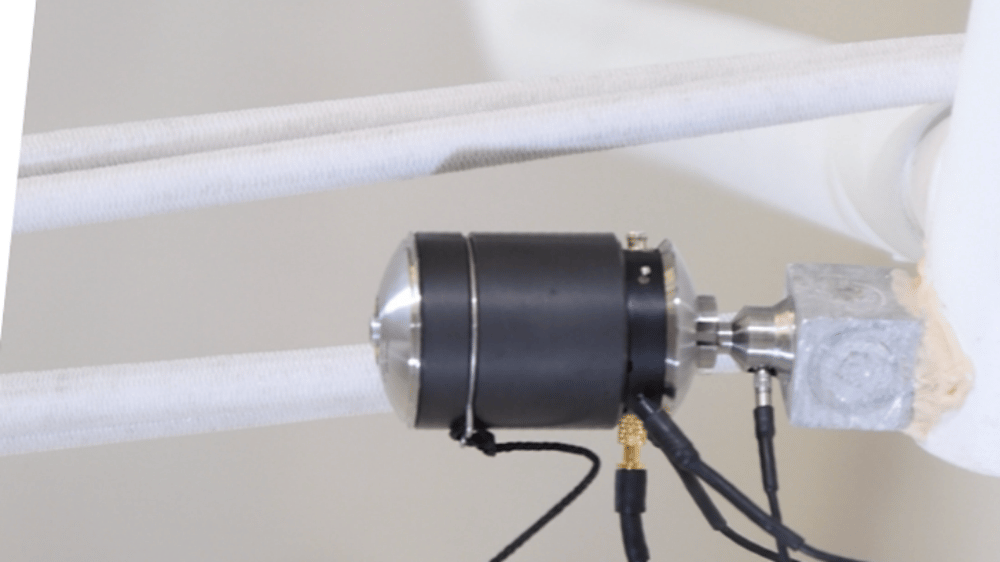

The Qsources integral shaker enables a direct mounting on the test object without external support or the need for alignment. Thanks to the patented internal suspension, the inert mass is dynamically decoupled from the test object and the force is always aligned along the internal stinger axis. This significantly improves the efficiency of testing by eliminating the support and alignment work (and risk) associated with conventional shaker testing.



Features

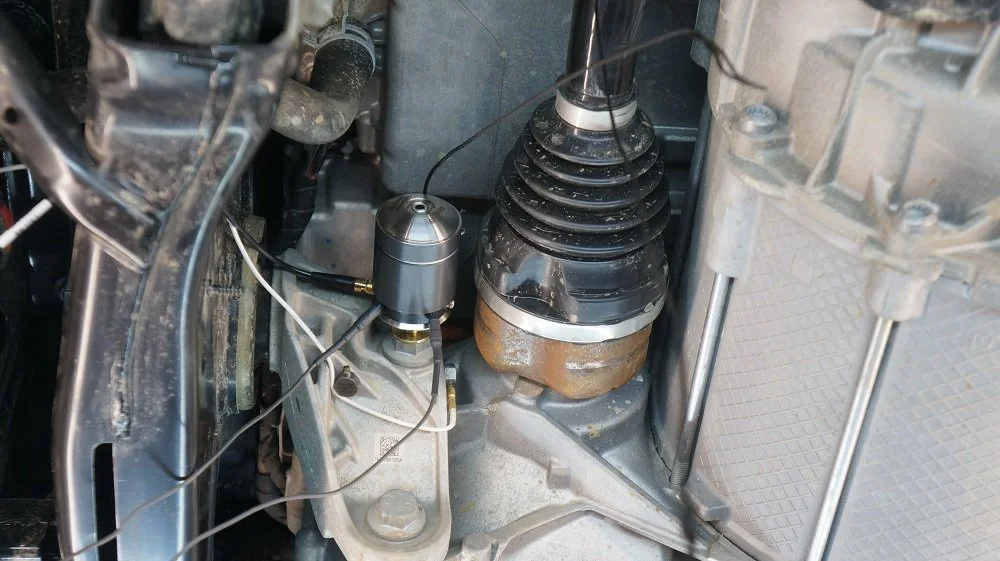

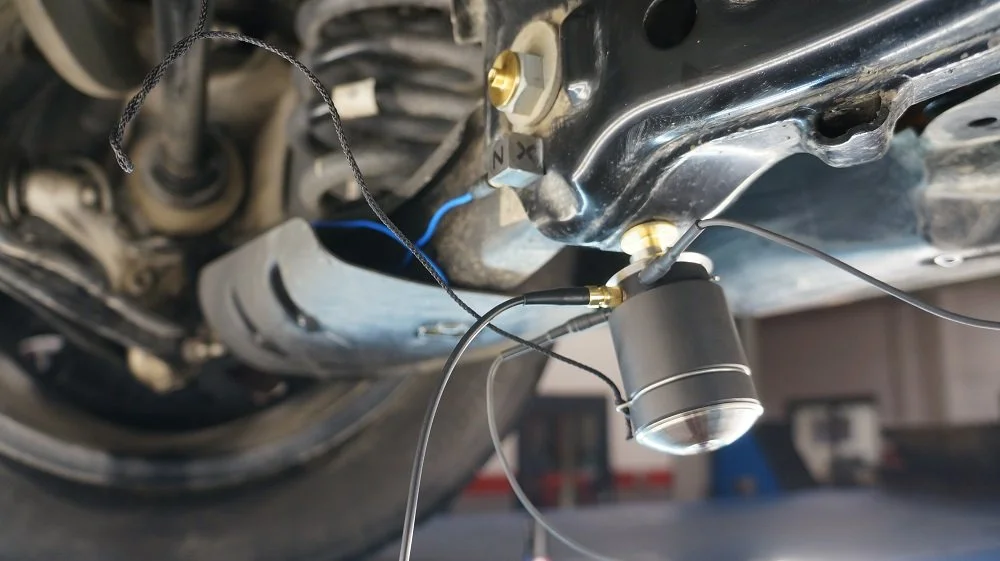

Extremely compact supporting difficult access zones

Highest force density in the market

Aligned and fully functional in any inclination

Integrated high resolution force sensor without adding coupled mass

In-line high resolution accelerometer module

Patented decoupling self-aligning suspension

Efficient multi-location excitation with adhesive rings

Extensive electrical mechanical and thermal protections for easier use

Measurement techniques

Transfer Path Analysis and sub-structuring

Inverse source or load identification

Experimental Modal Analysis

Statistical Energy Analysis and equivalent

Numerical model correlation and improvement



Main characteristics

Typical test-object mass 3 to 5000 Kg

Extended frequency range 5-2500 Hz**

Core frequency range 25-2000 Hz*

Sine at 25 Hz, force level 56 N peak to peak

Broadband random 8 N RMS force level

Coupled mass 10 gr

Shaker diameter 40 mm



Availability

The Qish shaker is marketed in cooperation with Siemens under the Simcenter Qsources product line






*What is core frequency range?

If a very high accuracy is essential it is advised to remain within the core frequency range for the typical test-object mass range. This is the range frequency range where the shaker was designed for and also has its highest force level.

**What is extended frequency range?

High accuracy in the extended frequency range is possible on the heavier objects. In some applications on lighter objects, like troubleshooting, fast application on many locations is needed. Or in some applications, like load identification and transfer path analysis, access is only possible with a small shaker. In those cases a lower accuracy or higher risk of error is accepted and the extended frequency range is used.

In all cases a reciprocity verification and two shaker coupling/decoupling verification can be applied to prevent misinterpretation of measurement results.
