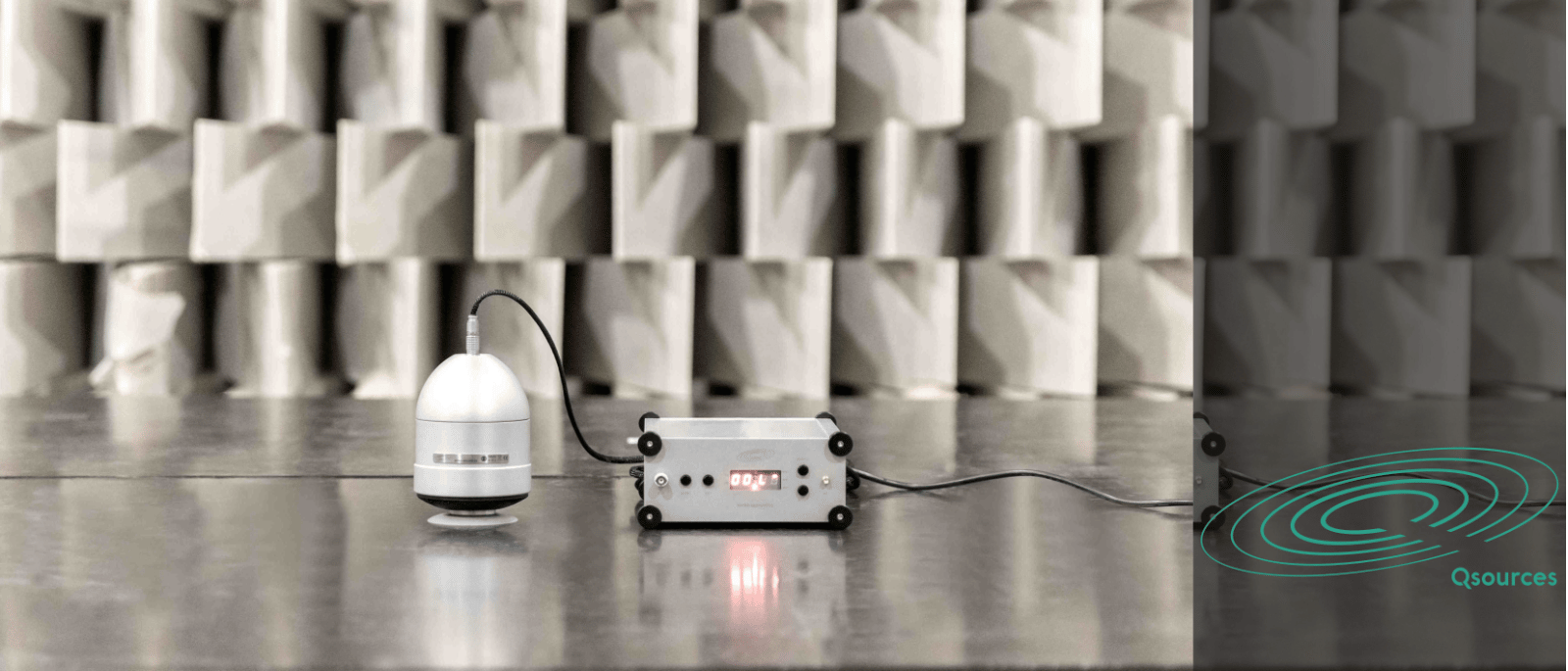

Monopole reference source - Qref

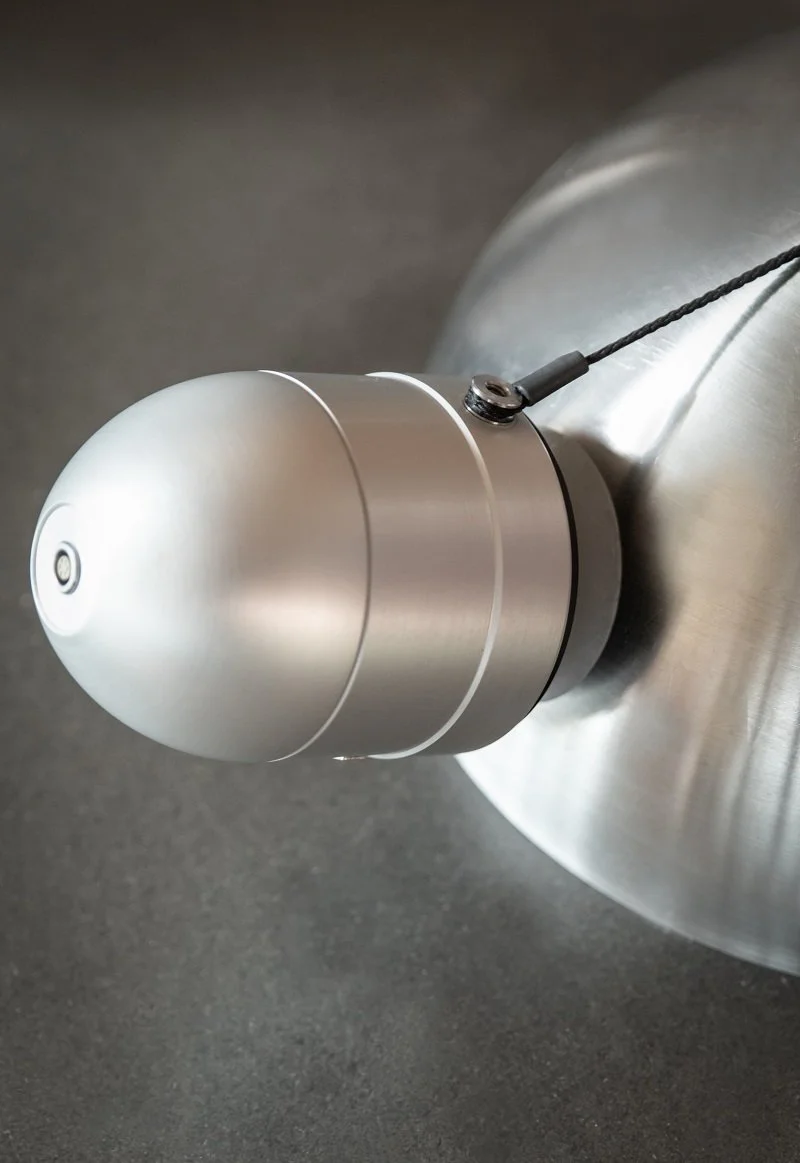

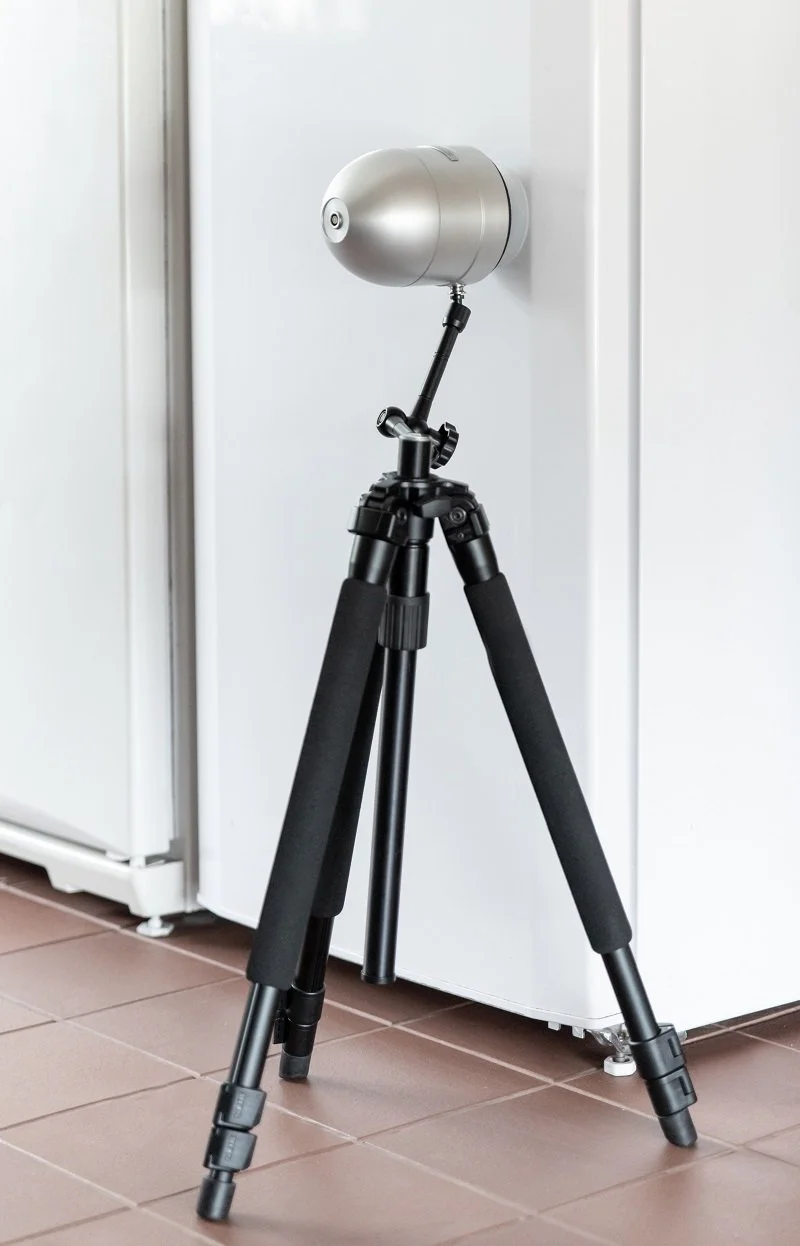

The Qsources Qref is a unique reference sound source; a monopole and extremely stable. Designed for placement against a larger surface in any inclination.

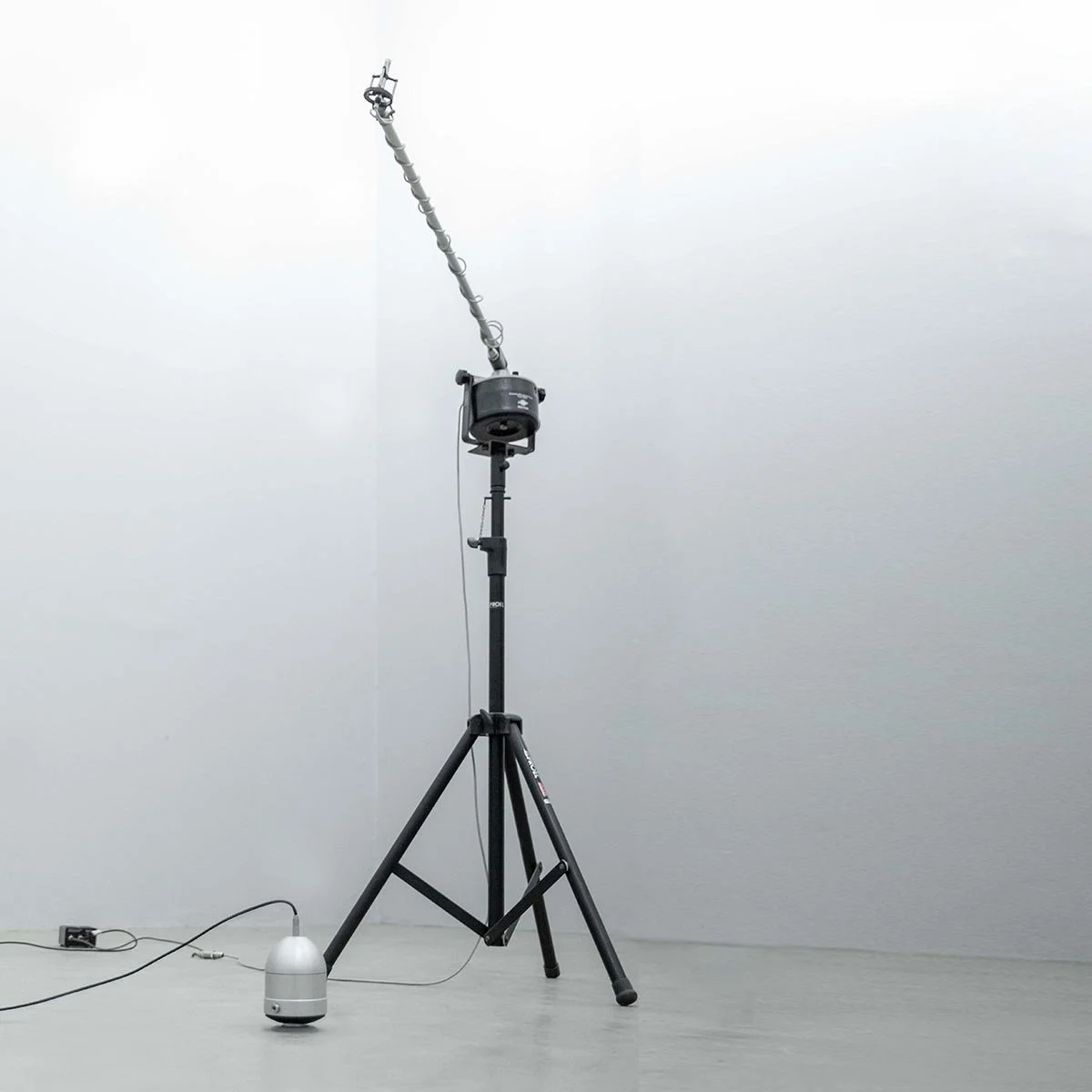

As a sound power reference source (ISO 2629) it is used for various applications, including regular verification (calibration) of noise test rooms for products like pumps, ventilation, network servers, for on-site indirect machinery sound power determination (ISO 3747), for an-echoic and reverberation room verification. But also full chain, from hardware to software, verification (calibration) of large microphone arrays is possible, room acoustics model correlation, and for Statistical Energy Analysis applications (SEA).

As a constant volume acceleration sound source the Qref is ideal for isolation testing of vehicles, elevators, machinery cabins. It supports basic and fast inverse sound source level estimation (without phase), large vehicle “pass by noise” or noise emission acoustic transfer (without phase)and Statistical Energy Analysis applications (SEA)

The Qref stands out from traditional sound power reference sources due to its small size, monopole character, high output, low weight, inclination flexibility and precise signal control.



Features

light weight portable, efficient set-up, easy positioning in any inclination

market unique sound power reference source

flat equalized output spectrum 50-8000 Hz third octave bands

high acoustic impedance allowing application in smaller spaces

Exceeding requirements for ISO 3747 / 6926

for (basic) use as a constant volume acceleration sound source

predictable stable volume acceleration level in all third octave bands without a real time volume acceleration signal

Measurement techniques

Test-room calibration and regular re-calibration

Machinery sound power emission following ISO 3747

Inverse sound power, or volume acceleration identification (without phase)

Room acoustic transfer measurement

Any measurement that requires a high sound power level



Main characteristics

pink noise, white noise and sine sweep

fully equalized equal level in all third octave bands

audible warning signal when out of its stable working zone

+-110 mm. diameter

Extreme lightweight 1.5 KG

Extended frequency range: 50-8000 Hz

Core frequency range: 100-6300 Hz

Overall sound power level of +-92 dB Lw, pink random

requiring a large flat surface to act correctly as power reference

surfaces smaller than an acoustic wavelength limit the frequency range to higher frequencies

correct volume acceleration source, even on smaller surfaces down to 30 cm

Functional only as a set, Qref with a dedicated version of the Qam amplifier



Accessibility

Depending on your region the Qref Qam set is marketed in cooperation with a selected local partner or available directly from Qsources

*What is core frequency range for sound sources?

In the core frequency range a close approximation of omni-directionality and high output can be expected. Or in case of sources for ISO standard regulated requirements, like for building acoustics applications, the source will be well within the ISO requirements.

**What is extended frequency range for sound sources?

Including the 50 Hz, 63 Hz and 80 Hz third octave bands in equalized random signal reduces the maximum level by approximately 4 dB. For the Qmir1 the level stability of the lowest and highest third octave bands is not at the same level as the third octaves within the core frequency range. The highest third octave band(s) do not reach the same level of omni-directionality.



Qref as a sound power reference
