Measurement power amplifier range - Qam

All sound sources and all shakers require a measurement power amplifier and a protection module for their normal operation. The Qam amplifiers are compact light and provide a high power output for easy use in any lab or field application. And, they are perfectly quiet as no internal fan, nor external cooling is needed. A base versions of the Qma assumes availability of an external analog signal. The higher level versions can include a processor and DSP on internal firmware. (No network access needed)

The Qam amplifier potentially provides multiple functions:

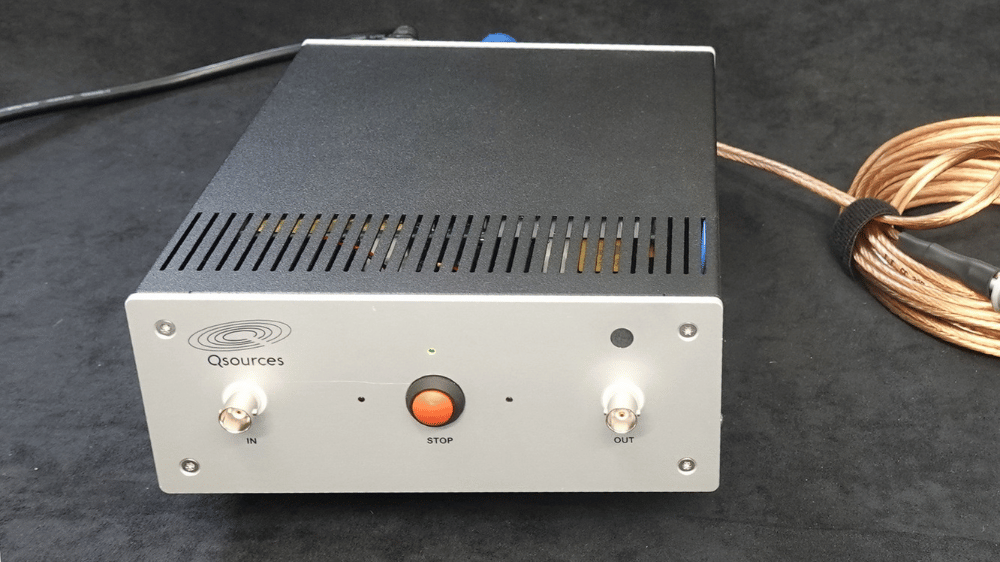

  • There are base versions which only combine power and protection for the specific shaker or source.

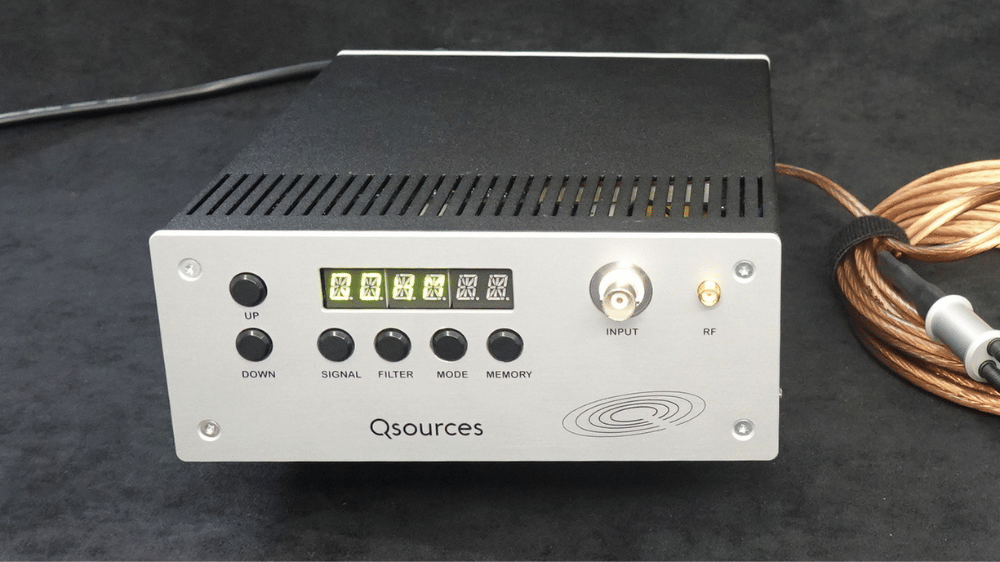

  • There are processor processor and DSP controlled versions that generate signals like random, sine, pink, white

  • The DSP versions can also equalize for a flat output spectrum of the sound source

  • For building acoustics applications in difficult small spaces, a low frequency third octave band equalizer allows adaption to the measurement space

  • The processor controlled versions allow to store and re-call settings

  • A remote activation/deactivation module is available with up to 150 meter range in free sight

  • There are versions that interact with the sound source to fully control the signal and the sound power (or volume acceleration) output

For each type of Qsources shaker or sound source one or more compatible amplifier(s) are available and will be advised.



Features

Absolutely silent, no forced air cooling

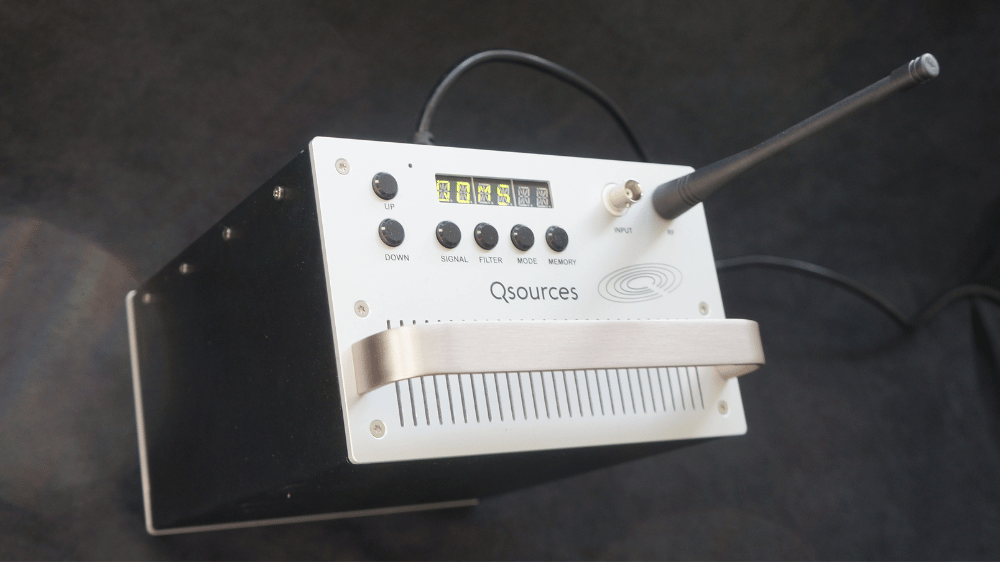

Straightforward user interface

Smart signals equalization

Including shaker/source protection function

Store setting option for repeatable standard measurement



Main characteristics

High power density 700 watt, or more

Wide frequency range 5-40000 Hz

Actual maximum power and bandwidth is adapted to the source/shaker

Extreme lightweight 1.7 Kg till 2.6 Kg (depending on version)

Remote de/activation up to 150 m free sight

Including shaker/source protection for each



Availability

Depending on your region the Qam amplifier is marketed in cooperation with a selected partner or available directly from Qsources

When inquiring for a shaker/sound source, also all our partners are able to recommend the right type of measurement power amplifier.
